1 Core 9/125 3.0mm ROHS Fiber Optic Jumper Optic Fiber Patch Cord Cable

Name: 1 Core 9125 30mm ROHS Fiber Optic Jumper Optic Fiber Patch Cord Cable
Brand: HXFiber
Price: 1 USD

Wholesale 1 Core 9/125 3.0mm ROHS Fiber Optic Jumper Optic Fiber Patch Cord Cable from china suppliers

Model Number : HX-Patch Cord-33

Place of Origin : Guangdong, China

Brand Name : HXFiber

Packaging Details : paper box

Supply Ability : 1500000 Piece/Pieces per Month

MOQ : 10 pieces

Price : Negotiable

Type : Fiber optic patch cord

Use : FTTH , FTTX

Warranty Time : 10 Years

Custom length : 1/2/3/5/7/9/10/100m or as your inquiry

Insertion Loss : < 0.2 dB

Cable diameter : 0.9 / 2.0 / 3.0 mm

Return loss : > 55 dB

Material of Outer sheath : PVC,LSZH,PU,PE

Armored Tube : with or without follow your inquiry

Working Temperature(℃) : -25℃~+70℃

Connector Ferrule : Zirconia Ceramic

Polish Type : SMF:UPC-UPC;UPC-APC;APC-UPC;APC-APC; MMF:UPC-UPC

MOQ : 1pcs

Port : shenzhen

Contact Now

10 SC/UPC-SC/UPC SM 1 Core 9/125 3.0mm ROHS Fiber Optic Jumper Optic Fiber Patch Cord Cable

Products Description

Connector Type	SC to SC	Jacket OD	3.0mm
Fiber Mode	9/125μm	Jacket Color	Yellow
Polish Type	UPC to UPC	Wavelength	1310/1550nm
Fiber Count	Simplex	Jacket Material	PVC/LSZH
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥55dB	Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C
Length	2/5/10/15/20m/100m customized length	delivery date	3-7days according the quantity

3.0mm Singlemode Fiber Patch Cord

Structure:

tight-buffered fiber+ Aramid yarn + jacket

Tight-buffered fiber:

SM:G652D,G657A1,G657A2 MM:62.5/125,50/125(OM3,OM4)

Available 0.9mm PVC tight-buffered fiber

Color:

SM/ White or yellow

MM/Blue or orange

characteristics: Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

Good mechanical and environmental characteristics;

More Products

Company View

Exhibitions

Cooperation

Certifications

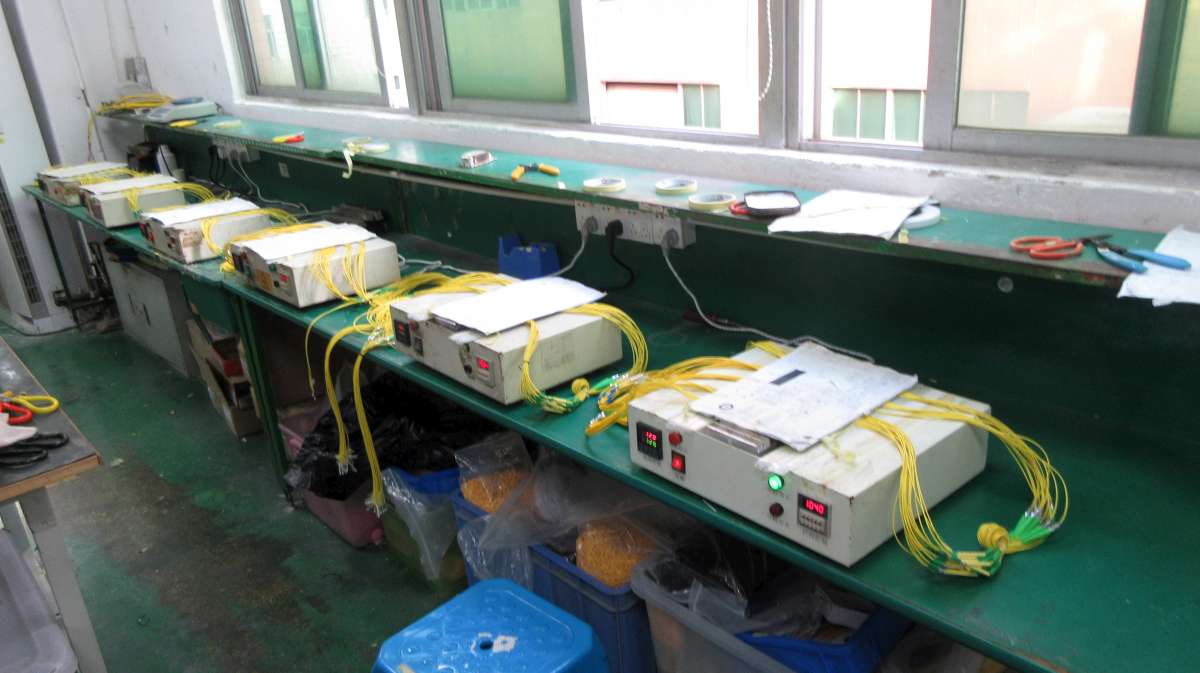

Production Line
